Heli bars installed Gosforth, Newcastle Upon Tyne

Repairing Cracked Lintels with Helical Reinforcement in Newcastle & Gosforth



Cracked lintels are a common structural problem in older properties across Newcastle and Gosforth, particularly in Victorian and early 20th-century terraced houses. Over time, structural movement, corrosion, or inadequate support can cause lintels above windows and doors to crack, resulting in visible damage to the surrounding brickwork.

At Trustguard Ltd, we recently completed a structural repair project in Gosforth, Newcastle Upon Tyne, where a cracked lintel above a window had caused horizontal and stepped cracking in the brickwork. Using modern helical reinforcement (Heli-Bar) systems, we stabilised the masonry and restored the structural strength of the opening without the need for major rebuilding.



What Causes Lintel Cracks in Older Properties?



Lintels play a crucial role in supporting the brickwork above windows and doors. When they weaken or fail, the load from the masonry above is no longer properly distributed.

Common causes of lintel cracking include:

  • Structural Movement in Older Properties
  • Corrosion of Older Steel Lintels
  • Inadequate Support Above Openings
  • Settlement or Ground Movement
  • Age-Related Deterioration of Building Materials

These issues are particularly common in Victorian terraces across Newcastle, where original construction methods and ageing materials can lead to structural stress around windows and door openings.



Signs of a Cracked Lintel



Homeowners often first notice lintel problems through visible cracking in the brickwork. Some of the most common warning signs include:

  • Horizontal Cracks Running Through Mortar Joints above Windows and Doors
  • Stepped Cracks in the Brickwork
  • Cracks Radiating from the Corners of Windows or Doors
  • Brickwork Movement above the Opening
  • Bowing or Separation of Masonry

If these signs appear, it is important to have the issue inspected by a structural repair specialist.



Our Recent Lintel Repair in Gosforth



During a recent structural repair project in Gosforth, Newcastle Upon Tyne, our team at Trustguard Ltd was called to inspect cracking above a front window of a traditional brick property.

The property had developed horizontal cracking along the mortar joints above the lintel, indicating that the original lintel was under stress and no longer properly supporting the brickwork.

Rather than remove the entire lintel – which can be disruptive and costly – we used a modern helical reinforcement system to stabilise the structure.

Before Repair

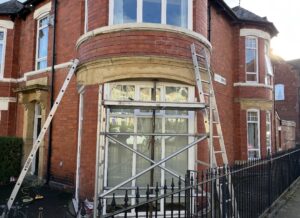

structural repairs in Newcastle Upon Tyne           Stone lintel step cracking



(The image shows cracking above the window where the brickwork had begun to separate along the mortar joints, with the stone lintel having a large crack)



During Repair

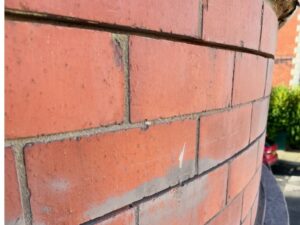

Slots in mortar joints to begin installing Heli Bar

















(Slots cut into mortar joints in brickwork to allow installation of grade 304 steel heli-bars to follow the curve of brickwork. )

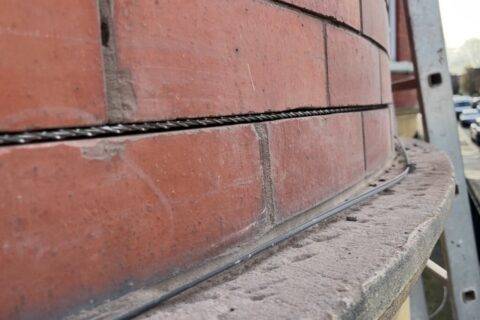

Reinforcement installation

Helical stainless steel reinforcement bars (Heli-Bars) were inserted into the prepared slots and bonded into place using a specialist structural grout.  These bars effectively create a reinforced beam within the brickwork, redistributing loads and stabilising the masonary above the window.

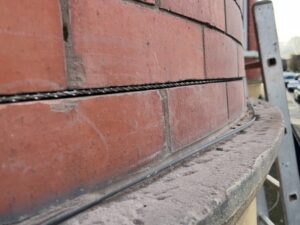

Heli bars installed in property in Newcastle Upon Tyne

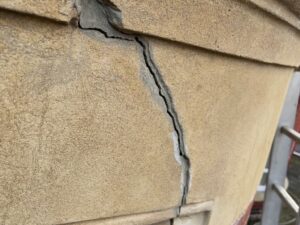

Lintel Crack Stitching

Where the lintel itself had cracked, reinforced bars were installed across the crack to stitch and strengthen the damaged section. Once the reinforcement was installed, the mortar joints were repointed with two-part stone filler, the stone was buffed and masonary paint was applied to achieve a seamlessly repair.



Lintel crack stitching Newcastle Upon Tyne



Why Helical Bar Repairs Are Ideal for Older Newcastle Homes



Many properties across Newcastle, Gosforth, Jesmond, and surrounding areas are traditional brick buildings constructed decades ago. Overtime, structural components such as lintels can weaken or shift.

Helical reinforcement systems are particularly suitable for these properties because they:

  • Work with existing brickwork rather than replace it
  • Require minimal disturbance to the structure
  • Provide long-term structural stability
  • Maintain the appearance of period properties

For homeowners wanting to protect the character of their property while resolving structural problems, this method offers an excellent solution.



Structural Repair Specialists in Newcastle & Gosforth



At Trustguard Ltd, we specialise in structural repair solutions for residential and commercial properties across Newcastle Upon Tyne and the whole of the North East.

Our services include:

We have extensive experience working with Victorian terraces, period homes, and traditional brick building, ensuring repairs are carried out safely and effectively.

We are endorsed by The Federation Of Master Builders, Which Trusted Traders and you can check out all our previous work here or here

If you have noticed cracks above your windows or doors, it is important to address the issue before it worsens. Early structural repairs can prevent further damage and avoid more costly work in the future.

Contact our team today for some specialist advice on 0191 4159471 or drop us a message here
